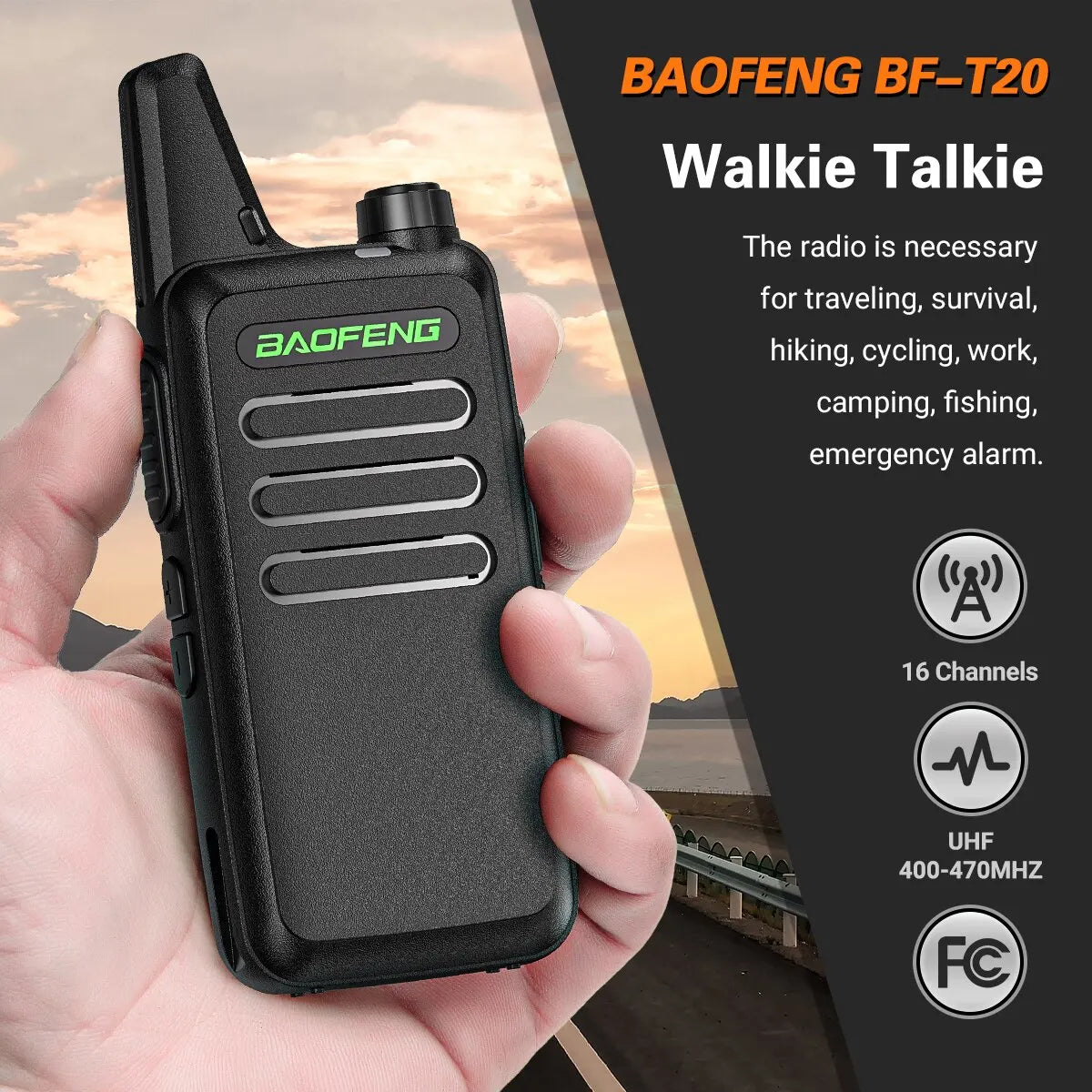

2 Way Radio - Baofeng BF-T20
2 Way Radio - Baofeng BF-T20
Couldn't load pickup availability
SPECIFICATIONS
- 16 Channel
- 400-470 mhz
- Max range - 3-5km
- IP45 Waterproof

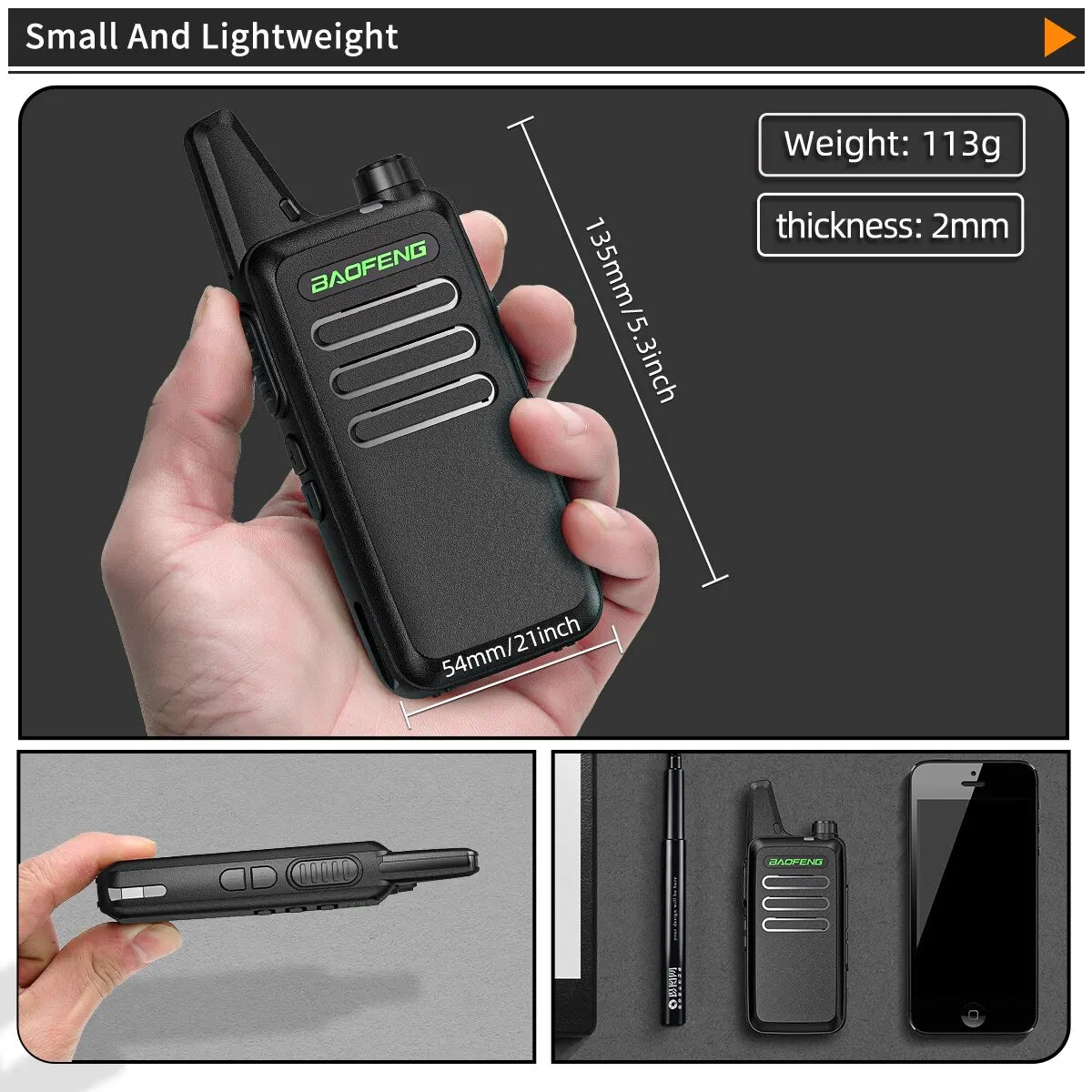

- Small and lightweight
- Integrated antenna
- Durable belt clip
- VOX function which allows hands free operation.
- Red and green charging indicator

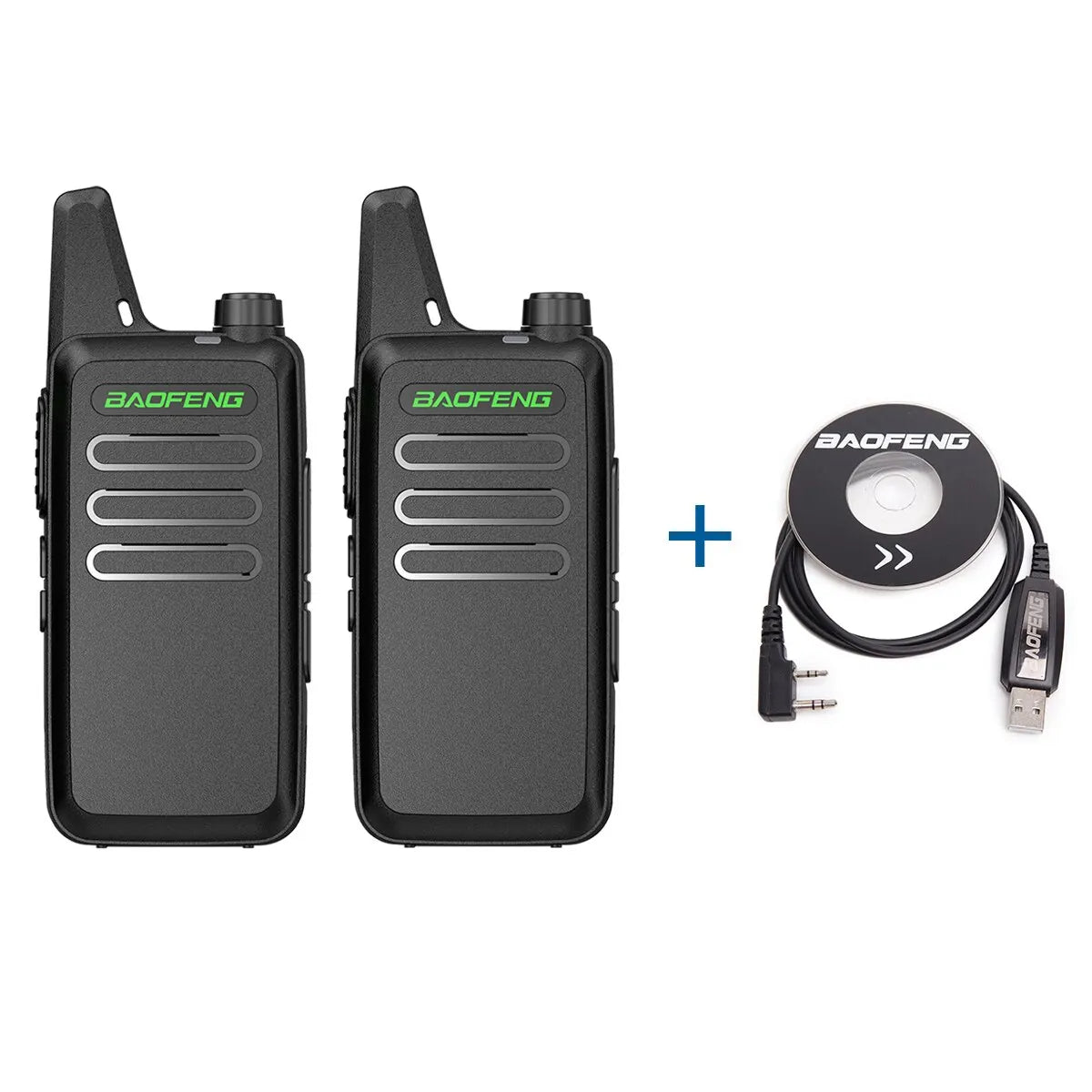

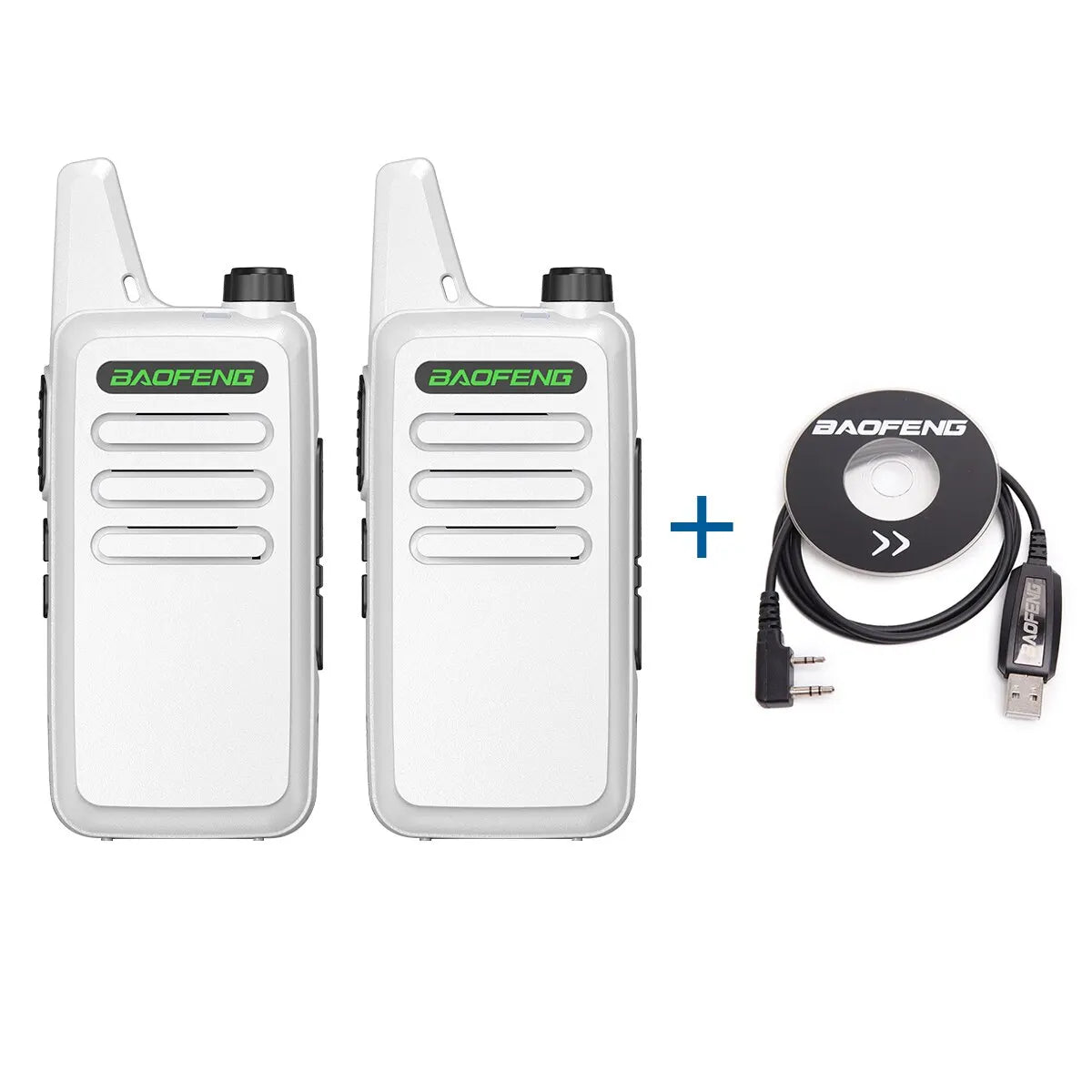

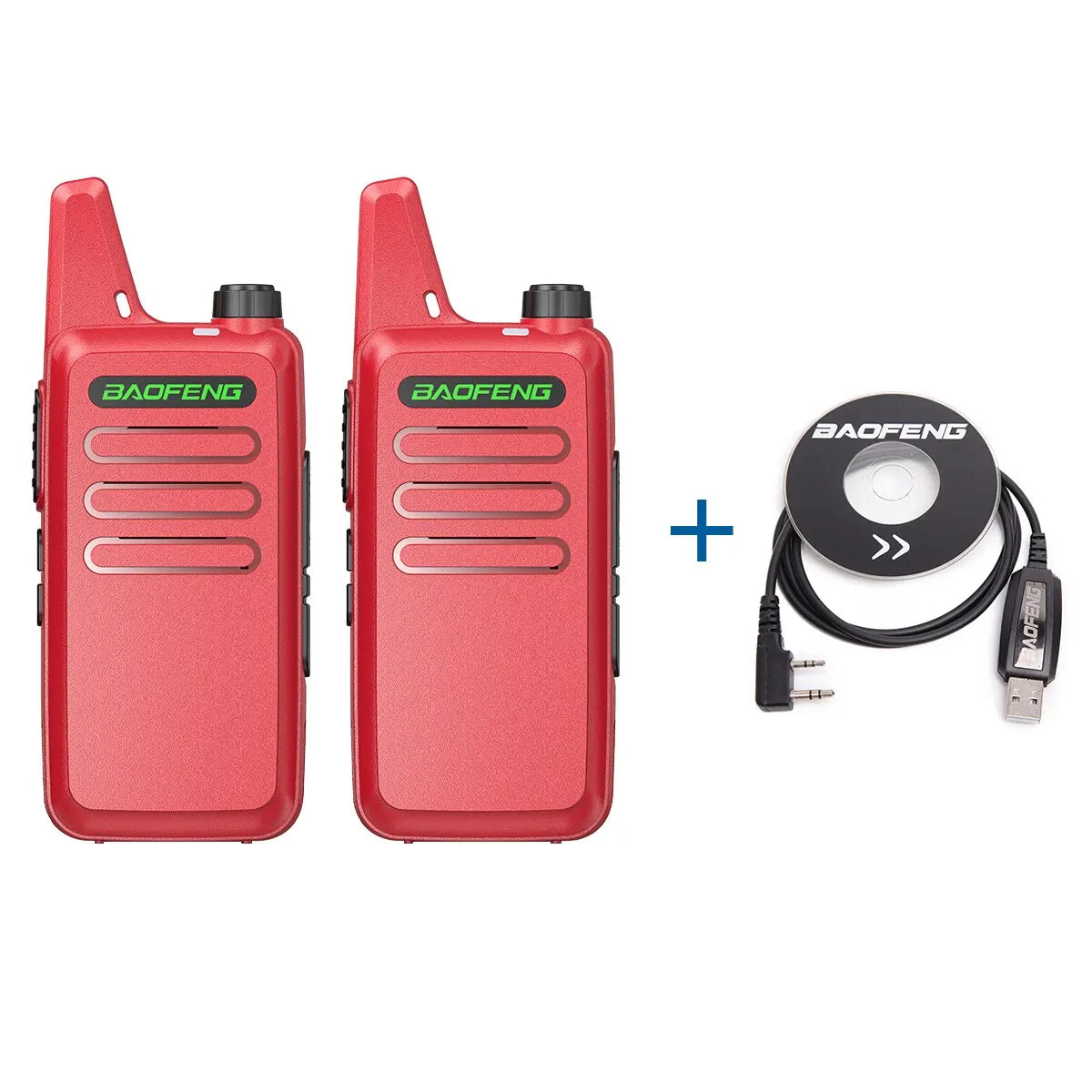

- PC Programmable - When you buy with programming cable, you can program the radio using your PC. Search for Baofeng programmer software on google - CHIRP is the most popular software
Specification
|
Model Number |
BF-T20
|
|
Frequency Range |
UHF 400-470MHz |
|
Power |
≤5W |
|
Colour |
Black |
|
Channel Capacity |
16 |
|

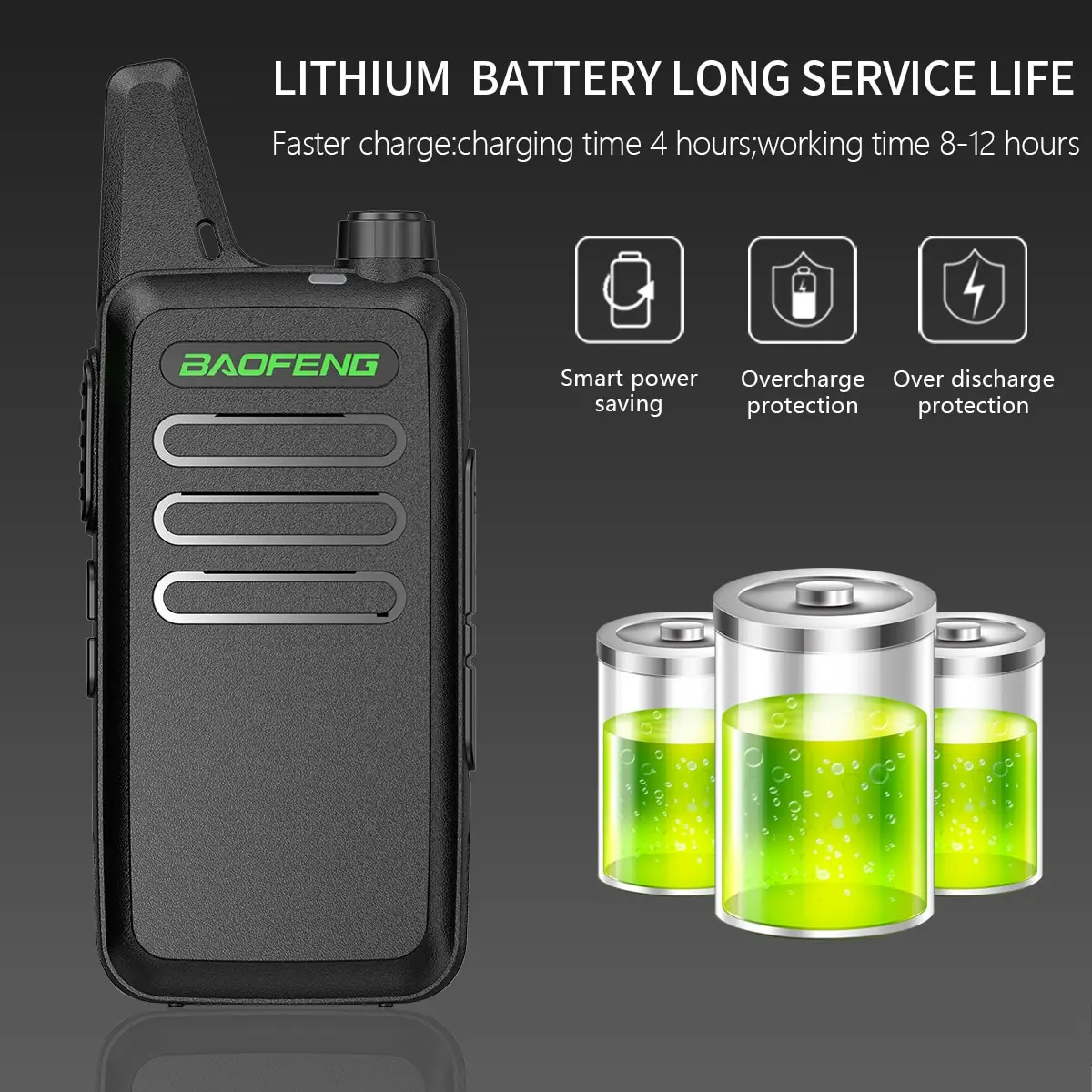

Battery Capacity |
Li-ion 1500mAh |
|
Working Voltage |
DC 3.7V |
|
Mic/Speaker/Programming Port |
2 pin plug type for Kenwood |
|
Antenna |
Integrated antenna |
|
Antenna Impendence |
50Ohm |
|
Weight Of Two Way Radio (Include battery and antenna) |
3.99oz(113g) |
|

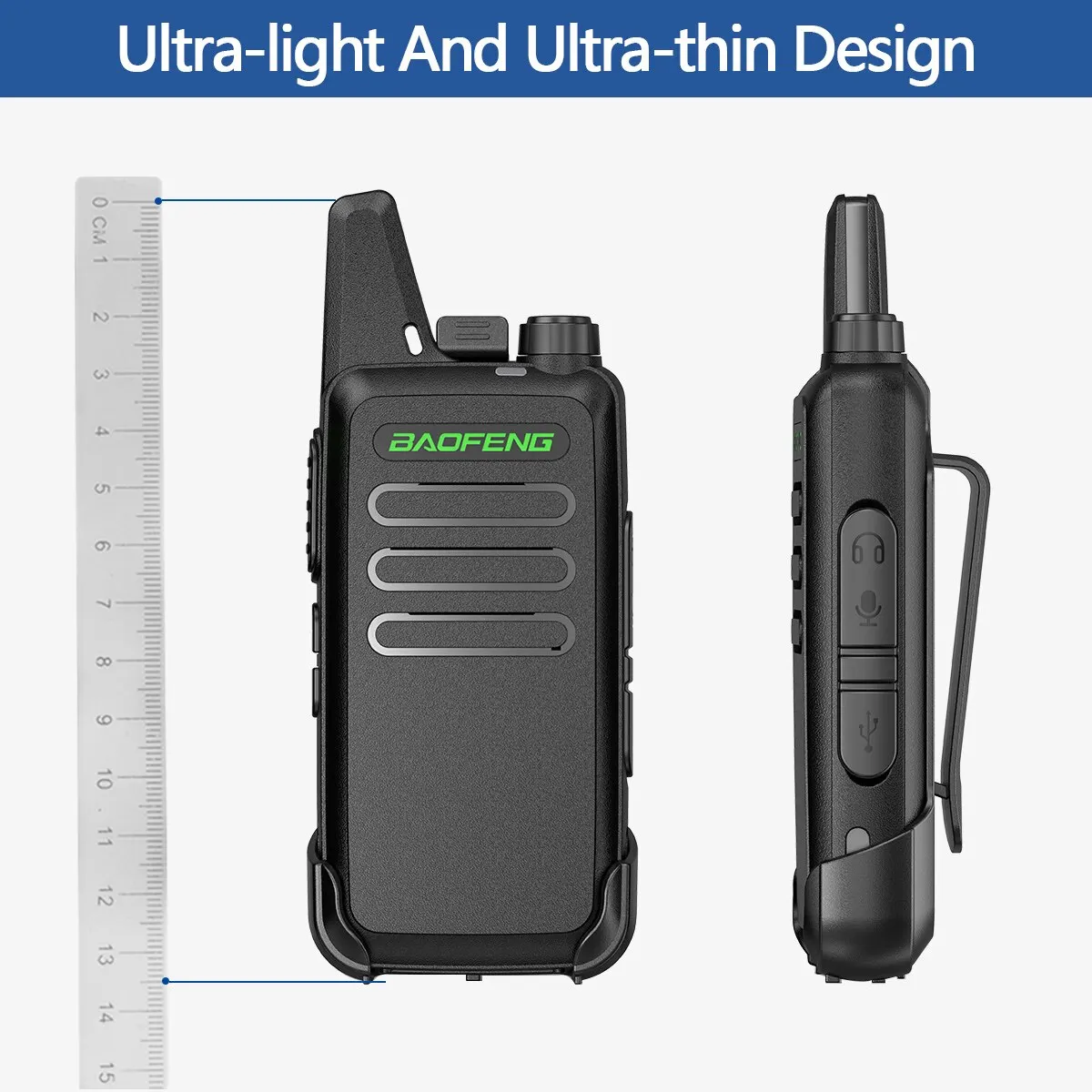

Size Of Two Way Radio |
(10.5*2.5*2)CM Not include antenna |
|
Transmitter |
|
|
Output Power |
5W |
|
The Maximum Deviation |
<=plusmn5KHz |
|
Residual Radiation |
<60dB |
|
Current |
<=1500mA |
|
Audio Response |
+7~-12.5dB |
|
Receiver |
|
|
Sensitivity |
<= 0.16microV(12dB SINAD) |
|
Squelch Sensitivity |
<0.2microV |
|
Intermodulation |
50dB |
|
Audio Power |
>=300mW |
|
Current |
<=100mA |
|
Squelch Current |
20mA |

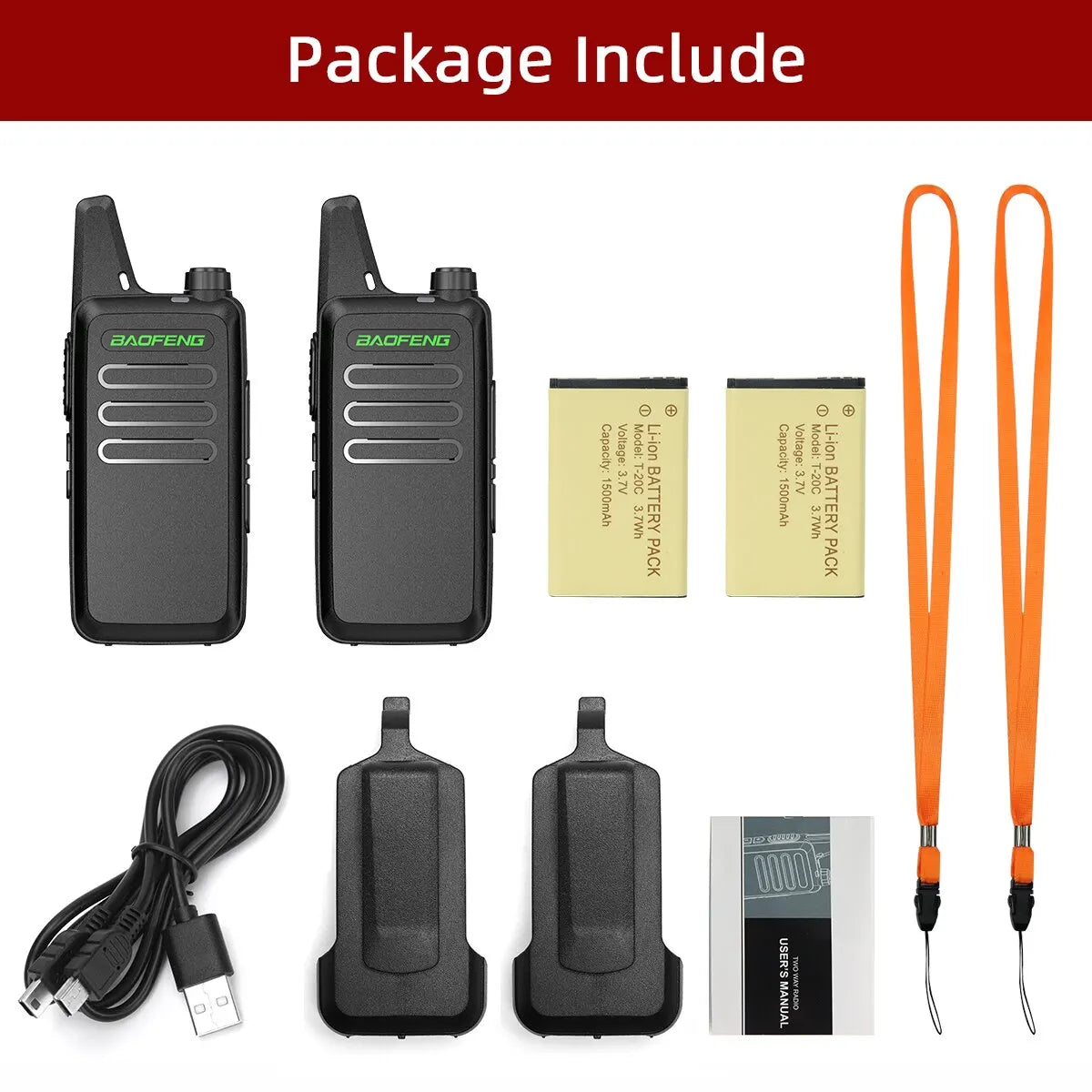

Package Include:
· 2 x Portable Two Way Radio
·2 x Rechargeable Li-ion battery
·1 x charge cable
· 2 x Belt Clips
·1 x User manual

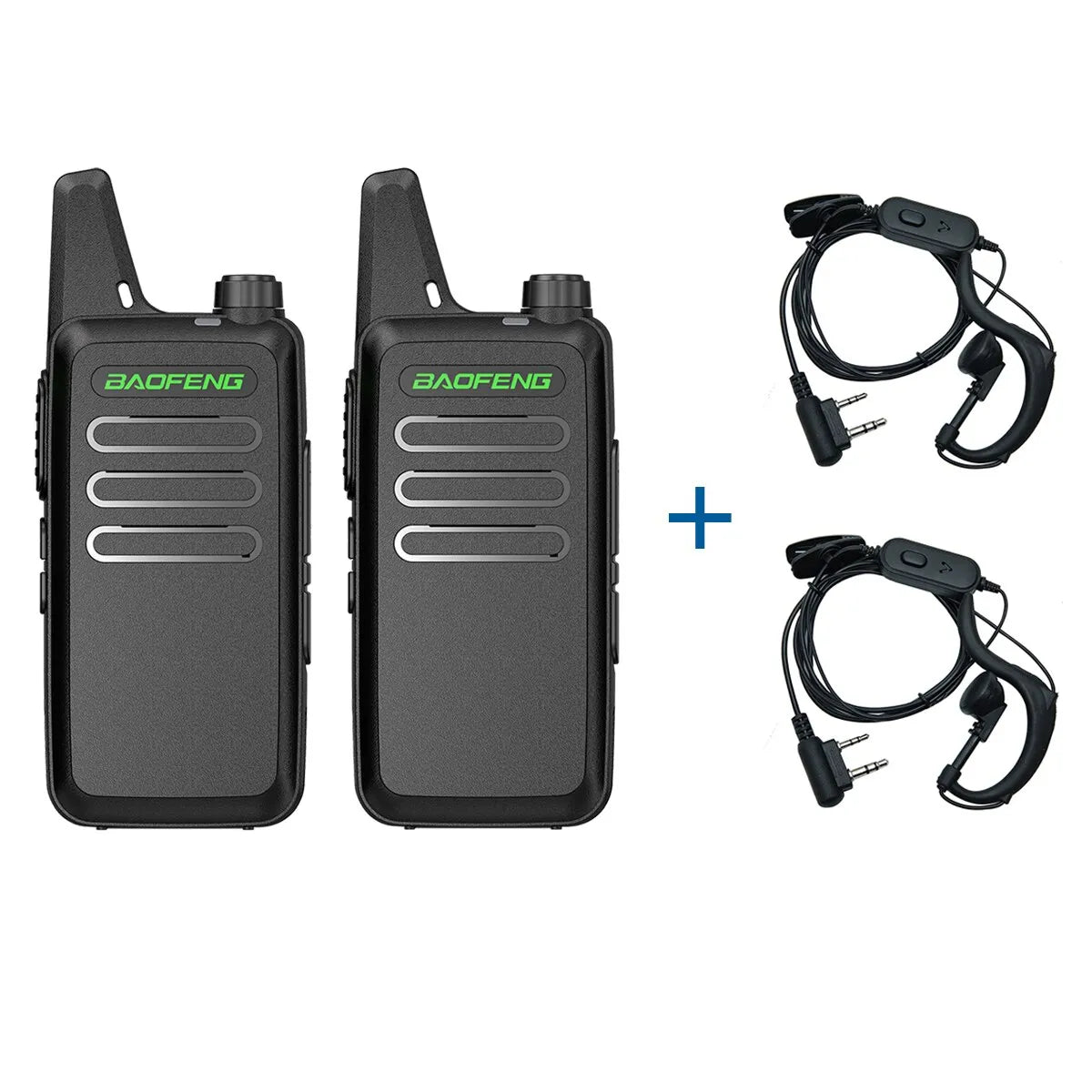

Other accessories depends on your varient choice
